Yolinux.com Tutorial

Linux Network Configuration

Networking, set-up and administration

This Linux tutorial covers TCP/IP networking, network administration and system configuration basics. Linux can support multiple network devices. The device names are numbered and begin at zero and count upwards. For example, a computer running two ethernet cards will have two devices labeled /dev/eth0 and /dev/eth1. Linux network configuration, management, monitoring and system tools are covered in this tutorial.

Linux TCP/IP Network Configuration Files:

FileDescription
/etc/resolv.confList DNS servers for internet domain name resolution.
Manual page for: /etc/resolv.conf
/etc/hostsLists hosts to be resolved locally (not by DNS).
Manual page for: /etc/hosts
/etc/nsswitch.confList order of host name search. Typically look at local files, then NIS server, then DNS server.
Manual page for: /etc/nsswitch.conf
Red Hat/Fedora/CentOS: /etc/sysconfig/networkSpecify network configuration. eg. Static IP, DHCP, NIS, etc.
Red Hat/Fedora/CentOS: /etc/sysconfig/network-scripts/ifcfg-deviceSpecify TCP network information.
Ubuntu/Debian: /etc/network/interfacesSpecify network configuration and devices. eg. Static IP and info, DHCP, etc.

Domain Resolution Configuration Files:

The following files configure the system so that host names can be resolved. This is required when one will ssh to a host name eg. venus.megacorp.com or point an email client to smtp.megacorp.com. The system must be able to resolve the host names to IP addresses so that the network connection can be made.

  • File: /etc/resolv.conf - host name resolver configuration file to define server responsible for name resolution
    search name-of-domain.com  - Name of your domain or ISP's domain if using their name server
    nameserver XXX.XXX.XXX.XXX - IP address of primary name server
    nameserver XXX.XXX.XXX.XXX - IP address of secondary name server

    This configures Linux so that it knows which DNS server will be resolving domain names into IP addresses. If using DHCP client, this will automatically be sent to you by the ISP and loaded into this file as part of the DHCP protocol. If using a static IP address, ask the ISP or check another machine on your network.

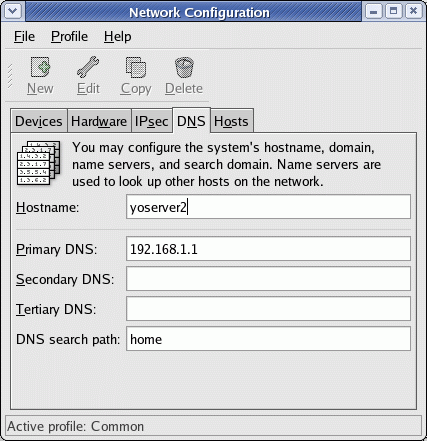

    Red Hat/Fedora GUI: /usr/sbin/system-config-network (select tab "DNS").

  • File: /etc/hosts - locally resolve node names to IP addresses by explicit definition
    127.0.0.1         your-node-name.your-domain.com  localhost.localdomain  localhost
    XXX.XXX.XXX.XXX   node-name

    Note when adding hosts to this file, place the fully qualified name first. (It helps sendmail identify your server correctly) i.e.:
        XXX.XXX.XXX.XXX  superserver.yolinux.com  superserver
    This informs Linux of local systems on the network which are not handled by the DNS server. (or for all systems in your LAN if you are not using DNS or NIS)

    The file format for the hosts file is specified by RFC 952.

    Red Hat/Fedora configuration GUI: /usr/sbin/system-config-network (select tab "Hosts").

  • File: /etc/nsswitch.conf - System Databases and Name Service Switch configuration file. Define the cascading priority of name resolvers
    hosts:   files dns nisplus nis

    This example tells Linux to first resolve a host name by looking at the local hosts file (/etc/hosts), then if the name is not found look to your DNS server as defined by /etc/resolv.conf and if not found there look to your NIS server.

    In the past this file has had the following names: /etc/nsswitch.conf, /etc/svc.conf, /etc/netsvc.conf, ... depending on the distribution.

Note that device configuration information can be found in the autogenerated file /etc/udev/rules.d/70-persistent-net.rules

Fedora / Red Hat Network Configuration Files:

Files which hold the Linux system network configuration:

  • /etc/sysconfig/network

    Red Hat network configuration file used by the system during the boot process.

  • File: /etc/sysconfig/network-scripts/ifcfg-eth0
    Configuration settings for your first ethernet port (0). Your second port is eth1.

  • File:
    • /etc/modprobe.conf (kernel 2.6)
    • /etc/modules.conf (kernel 2.4)
    • (or for older systems: /etc/conf.modules)
    Example statement for Intel ethernet card:
    alias eth0 eepro100
    Modules for other devices on the system will also be listed. This tells the kernel which device driver to use if configured as a loadable module. (default for Red Hat)

Fedora / Red Hat Network GUI Configuration Tools:

The following GUI tools edit the system configuration files. There is no difference in the configuration developed with the GUI tools and that developed by editing system configuration files directly.

TCP/IP ethernet configuration:
  • Network configuration:

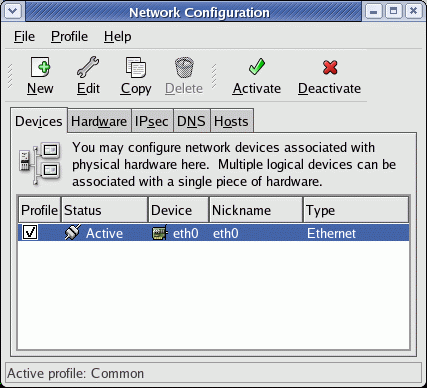

    /usr/sbin/system-config-network (FC-2/3) GUI shown here --->
    /usr/bin/redhat-config-network (/usr/bin/neat) (RH 7.2+ FC-1)
  • Text console configuration tool:
    /usr/sbin/system-config-network-tui (Text User Interface (TUI) for Fedora Core 2/3)
    /usr/bin/redhat-config-network-tui (RH 9.0 - FC-1)
  • Text console network configuration tool.
    First interface only - eth0: /usr/sbin/netconfig
  • /usr/bin/netcfg (GUI) (last available with RH 7.1)
Gnome Desktop:
  • Gnome Desktop Network Configuration
    /usr/bin/gnome-network-preferences (RH 9.0 - FC-3)
    Proxy configuration. Choose one of three options:
    1. Direct internet connection
    2. Manual proxy configuration (specify proxy and port)
    3. Automatic proxy configuration (give URL)

Assigning an IP address:

Computers may be assigned a static IP address or assigned one dynamically. Typically a server will require a static IP while a workstation will use DHCP (dynamic IP assignment). The Linux server requires a static IP so that those who wish to use its resources can find the system consitently. It is more easily found if the IP address does not change and is static. This is not important for the Linux client workstation and thus it is easier to use an automated Dynamic Host Configuration Protocol (DHCP) for IP address assignment.

Static IP address assignment:

Choose one of the following methods:

  • Command Line: There are two commands which can assign an IP address, ip (current practice) and ifconfig (current and legacy).
    • ip command:
      /sbin/ip link   # show list of network interfaces
      /sbin/ip addr add 192.168.10.12/255.255.255.0 broadcast 192.168.10.255 dev eth0
      /sbin/ip addr show

      [Potential Pitfall]: Avoid the following error by executing the command as root or use sudo:
      RTNETLINK answers: Operation not permitted

    • ifconfig command:
      /sbin/ifconfig -a   # show list of network interfaces even if down
      /sbin/ifconfig eth0 192.168.10.12 netmask 255.255.255.0 broadcast 192.168.10.255
      /sbin/ifconfig      # no arguments defaults to showing the current IP configuration

      [Potential Pitfall]: Avoid the following error by executing the command as root or use sudo:
      SIOCSIFADDR: Operation not permitted
      SIOCSIFFLAGS: Operation not permitted
      SIOCSIFNETMASK: Operation not permitted
      SIOCSIFBRDADDR: Operation not permitted
      SIOCSIFFLAGS: Operation not permitted

    Network address by convention would be the lowest: 192.168.10.0
    Broadcast address by convention would be the highest: 192.168.10.255
    The gateway router can be anything, but following convention: 192.168.10.1

    Note: the highest and lowest addresses are based on the netmask. The previous example is based on a netmask of 255.255.255.0

  • Red Hat / Fedora GUI tools:
    • /usr/bin/neat Gnome GUI network administration tool. Handles all interfaces. Configure for Static IP or DHCP client.
      (First available with Red Hat 7.2.)
    • /usr/bin/netcfg (Handles all interfaces) (last available in Red Hat 7.1)

  • Red Hat / Fedora Console tools:
    • /usr/sbin/system-config-network-tui (Text User Interface)
    • /usr/sbin/netconfig (Only seems to work for the first network interface eth0 but not eth1,...)

  • Directly edit configuration files/scripts. See format below.

The ip and ifconfig commands do NOT store this configuration permanently. Upon reboot this information is lost. Manually add the network configuration to the system configuration files to have them persist:
  • Red Hat/Fedora/CentOS: /etc/sysconfig/network-scripts/ifcfg-eth0 for the first NIC, ifcfg-eth1 for the second, etc
  • Ubuntu/Debian: /etc/network/interfaces as shown below.

Any other commands you may want to add to the system boot sequence can be added to the end of the file /etc/rc.d/rc.local

The commands netcfg and netconfig make permanent changes to system network configuration files located in /etc/sysconfig/network-scripts/, so that this information is retained and used upon system boot.

The IANA has allocated IP addresses in the range of 192.168.0.0 to 192.168.255.255 for private networks.

[Potential Pitfall]: You assign an IP address and the network connection still does not work?

  • Your system settings may not be compatible with your router configuration
  • You still may need to add a route (see Route configuration below)
  • Firewall rules may be blocking network traffic. Test by flushing all firewall rules: iptables -F
  • Your system or your network may not be configured to use your upstream network

Helpful tools:

Command line IP Configuration: ip

ip [ OPTIONS ] OBJECT COMMAND
or
ip OBJECT COMMAND

where:
  • OPTIONS: -V[ersion] | -h[uman-readable] | -s[tatistics] | -r[esolve] | -f[amily] { inet | inet6 | ipx | dnet | link } | -o[neline] | -n[etns] name | -a[ll] | -c[olor]
  • OBJECT: link | addr(ess) | addrlabel | route | rule | neigh | ntable | tunnel | tuntap | maddress | mroute | mrule | monitor | xfrm | netns | l2tp | tcp_metrics
  • COMMAND: add | delete | set | show | list | help
    (Note: not all "OBJECT"s support all "COMMAND"s. Use the command line help. eg: ip addr help)
Options:
OBJECTDescription
address
addr
a
protocol (IP or IPv6) address on a device
addrlabel
addrl
Label configuration for protocol address selection
l2tptunnel ethernet over IP (L2TPv3)
link
l
network device
maddressmulticast address
monitorwatch for netlink messages
mroutemulticast routing cache entry
mrulerule in multicast routing policy database
neighbour
neigh
n
ARP or NDISC cache entry
netnsmanage network namespaces
ntablemanage the neighbor cache's operation
route
r
routing table entry
rulerule in routing policy database
tcp_metrics
tcpmetrics
manage TCP Metrics
tunneltunnel over IP
tuntapmanage TUN/TAP devices
xfrmmanage IPSec policies
Man page: ip

Examples:
  • Assign a broadcast address: ip addr add broadcast 192.168.10.255 dev eth0
  • Delete the IP address assignment from a network interface: ip addr del 192.168.10.12/24 dev eth0
  • Assign an IP address using CIRD notation: ip addr add 192.168.10.12/24 broadcast 192.168.10.255 dev eth0
  • Turn off/shut down a network interface: ip link set dev eth1 down
  • Turn on a network interface: ip link set dev eth1 up

Command line IP Configuration: ifconfig

ifconfig interface [aftype] options | address ...

where:
  • interface: eth0, eth1, eth2 represent the computer ethernet interfaces
  • aftype: inet (TCP/IP, default), inet6 (IPv6), ax25 (AMPR Packet Radio), ddp (Appletalk Phase 2), ipx (Novell IPX) or netrom (AMPR Packet radio)
Options:
OptionDescription
upActivate the interface. Implied if IP addresses are specified.
downShut down interface
arpEnable ARP protocol on this interface. Allow ARP to detect the addresses of computer hosts attached to the network.
-arpDisable ARP protocol on this interface
promiscEnable promiscuous mode. Receive all packets on the network not just those destined for this interface.
-promiscDisable promiscuous mode.
mtu ##Specify the Maximum Transfer Unit (MTU) of the interface. The MTU is the maximum number of octets the interface is able to handle in a single transaction. Defaults: Ethernet: 1500 SLIP: 296
broadcast XXX.XXX.XXX.XXXSet the network broadcast address for this interface.
netmask XXX.XXX.XXX.XXXSet the IP network mask for this interface.
Man page: ifconfig

Ubuntu / Debian IP Configuration Files:

File: /etc/network/interfaces

Static IP example:
auto lo
iface lo inet loopback

auto eth0
iface eth0 inet static
        address 208.88.34.106
        netmask 255.255.255.248
        broadcast 208.88.34.111
        network 208.88.34.104
        gateway 208.88.34.110

Dynamic IP (DHCP) example:

auto lo
iface lo inet loopback

auto eth0
iface eth0 inet dhcp

auto eth1
iface eth1 inet dhcp

auto eth2
iface eth2 inet dhcp

auto ath0
iface ath0 inet dhcp

auto wlan0
iface wlan0 inet dhcp
Interfaces:
  • lo: Loopback interface (network within your system without slowing down for the real ethernet based network)
  • eth0: First ethernet interface card
  • wlan0: First wireless network interface

Also see "man interfaces"

Ubuntu GUI Network Tools:

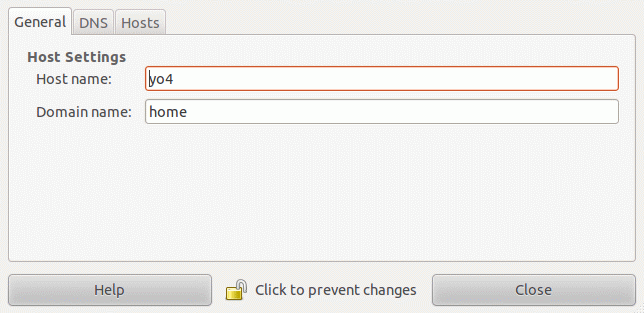

  • /usr/bin/gnome-nettool (apt-get install gnome-nettool)
  • /usr/bin/network-admin (apt-get install gnome-network-admin)

Red Hat / Fedora / CentOS IP Configuration Files:

The Red Hat configuration tools store the configuration information in the file /etc/sysconfig/network.
They will also allow one to configure routing information.

  • File: /etc/sysconfig/network

    Static IP address Configuration: (Configure gateway address)

    NETWORKING=yes
    HOSTNAME=my-hostname      - Hostname is defined here and by command hostname
    FORWARD_IPV4=true         - True for NAT firewall gateways and linux routers.
                             False for everyone else - desktops and servers.
    GATEWAY="XXX.XXX.XXX.YYY" - Used if your network is connected to another network or the internet.
                             Static IP configuration. Gateway not defined here for DHCP client.

    OR for DHCP client configuration:
    NETWORKING=yes
    HOSTNAME=my-hostname      - Hostname is defined here and by command hostname

    (Gateway is assigned by DHCP server.)

    OR for NIS client configuration:
    NETWORKING=yes
    HOSTNAME=my-hostname      - Hostname is defined here and by command hostname
    NISDOMAIN=NISProject1     - NIS domain to attach



  • File (Red Hat/Fedora): /etc/sysconfig/network-scripts/ifcfg-eth0
    (S.u.s.e.: /etc/sysconfig/network/ifcfg-eth-id-XX:XX:XX:XX:XX)
    This file used by the command scripts ifup and ifdown

    Static IP address configuration:

    DEVICE=eth0
    BOOTPROTO=static
    BROADCAST=XXX.XXX.XXX.255
    IPADDR=XXX.XXX.XXX.XXX
    NETMASK=255.255.255.0
    NETWORK=XXX.XXX.XXX.0
    ONBOOT=yes                       - Will activate upon system boot

    RHEL/Fedora additions:
    • TYPE=Ethernet
    • HWADDR=XX:XX:XX:XX:XX:XX
    • GATEWAY=XXX.XXX.XXX.XXX

    OR for DHCP client configuration:

    DEVICE=eth0
    ONBOOT=yes
    BOOTPROTO=dhcp

    RHEL/Fedora additions:
    • IPV6INIT=no
    • USERCTL=no
    • PEERDNS=yes
    • TYPE=Ethernet
    • HWADDR=XX:XX:XX:XX:XX:XX
(Used by script /etc/sysconfig/network-scripts/ifup to bring the various network interfaces on-line)
To disable DHCP change BOOTPROTO=dhcp to BOOTPROTO=none

In order for updated information in any of these files to take effect, one must issue the command: service network restart (or: /etc/init.d/network restart)

Route:

The Linux OS manages outbound and inbound IP (Internet Protocol) traffic. Inbound traffic is captured based on ARP and IP address configuration. Outbound traffic is managed by routes. Routing determines the path these packets take so that they are sent to their destinations. This is required for all IP traffic, local and remote, including when multiple network interfaces are available. Routes are held by the kernel routing table.

Direct routing table entries occur when the source and destination hosts are on the same physical network and packets are sent directly from the source to the destination.

Indirect routing table entries occur when the source and destination hosts are on different physical networks. The destination host must be reached through one or more IP gateways. The first gateway is the only one which is known by the host system.

Default routing defines a gateway to use when the direct network route and the indirect host routes are not defined for a given IP address.

Static routes: IP uses a routing table to determine where packets should be sent. First the packet is examined to see if its' destination is for the local or remote network. If it is to be sent to a remote network, the routing table is consulted to determine the path. If there is no information in the routing table then the packet is sent to the default gateway. Static routes are set with the route command and with the configuration file:
  • Red Hat/Fedora: /etc/sysconfig/network-scripts/route-eth0
  • Red Hat 7: /etc/sysconfig/static-routes
  • S.u.s.e. 9.2: /etc/sysconfig/network/routes
10.2.3.0/16 via 192.168.10.254
See command: /etc/sysconfig/network-scripts/ifup-routes eth0

Dynamic routes: RIP (Routing Information Protocol) is used to define dynamic routes. If multiple routes are possible, RIP will choose the shortest route. (Fewest hops between routers not physical distance.) Routers use RIP to broadcast the routing table over UDP port 520. The routers would then add new or improved routes to their routing tables.

Man pages:

  • route - show / manipulate the IP routing table (Static route) Show routes:
    OptionDescription
    -ndisplay IP addresses. Do not resolve host names for faster results.
    -ePrint more extensive information about routes.
    -vVerbose.
    --helpRoute command information.
    Manipulate routes:
    OptionDescription
    add or del or neitherAdd or delete route information. If not specified then print route table information.
    -host XXX.XXX.XXX.XXXAdd a single computer host identified by the IP address.
    -net XXX.XXX.XXX.XXXAdd a network identified by the network address, to the route.
    gw XXX.XXX.XXX.XXXSpecify the network gateway.
    netmask XXX.XXX.XXX.XXXSpecify the network netmask.
    defaultOf all the routes specified, identify one as the default network route.
    (typically the gateway is specified as the default route)
    Examples:
    • Show routing table: route -e
    • Access individual computer host specified via network interface card eth1:
      route add -host 123.213.221.231 eth1
    • Access ISP network identified by the network address and netmask using network interface card eth0:
      route add -net 10.13.21.0 netmask 255.255.255.0 gw 192.168.10.254 eth0
      Conversely: route del -net 10.13.21.0 netmask 255.255.255.0 gw 192.168.10.254 eth0
    • Specify default gateway to use to access remote network via network interface card eth0:
      route add default gw 201.51.31.1 eth0
      (Gateway can also be defined in /etc/sysconfig/network)
    • Specify two gateways for two network destinations: (i.e. one external, one internal private network. Two routers/gateways will be specified.)
      Add internet gateway as before: route add default gw 201.51.31.1 eth0
      Add second private network: route add -net 10.0.0.0 netmask 255.0.0.0 gw 192.168.10.254 eth0
  • ip - show / manipulate routing, devices, policy routing and tunnels
    Examples:
    • Show routing table: ip route
    • Add a new route: ip route add 192.168.10.0/24 via 192.168.10.1
      (where the network address is 192.168.10.0, the netmask is "/24" or 255.255.255.0 and the router has the IP address 192.168.10.1)
    • Specify default gateway to use to access remote network via network interface card eth0: ip route add default 192.168.10.0/24 via 192.168.10.1
    • Delete a route: ip route del 192.168.1.0/24 dev eth0
    • Delete a default route: ip route del default
  • fuser - identify processes using files or sockets
    Show which processes are using a particular file/directory: fuser file-name
    This command will list the process ID and a descriptor indicating the following:
    • c: Durrent directory
    • e: Executable
    • f: a file open for reading
    • F: a file open for writing
    • r: Roo directory
    • m: Memory Mapped File/Directory

    List processes using a specified TCP/UDP socket: fuser -v -n tcp 8080
    Kill a process using a specified TCP/UDP socket: fuser -i -k 8080/tcp
    Any signal can be sent to the process, not just "KILL". (fuser -l): HUP QUIT TRAP ABRT IOT STOP etc

Routers and Routing:

Routing software can be run on Linux so that it will act as a router. Older packages such as routed and gated are no longer supported. Quagga, a fork of GNU "Zebra", has replaced them. Quagga is a routing software suite, providing implementations of OSPFv2, OSPFv3, RIP v1 and v2, RIPng and BGP-4 for Linux platforms.

Installation: RH/CentOS: yum install quagga

Quagga Man Pages:
  • zebra - a routing manager for use with associated Quagga components
  • bgpd - a BGPv4, BGPv4+, BGPv4- routing engine for use with Quagga routing software
  • isisd - an IS-IS routing engine for use with Quagga routing software
  • ospfd - an OSPFv2 routing engine for use with Quagga routing software
  • ospf6d - an OSPFv3 routing engine for use with Quagga routing software
  • ripd - a RIP routing engine for use with Quagga routing software
  • ripngd - a RIPNG routing engine for use with Quagga routing software
  • vtysh - a integrated shell for Quagga routing software

Network IP aliasing:

Assign more than one IP address to one ethernet card:

ifconfig eth0   XXX.XXX.XXX.XXX netmask 255.255.255.0 broadcast XXX.XXX.XXX.255
ifconfig eth0:0 192.168.10.12   netmask 255.255.255.0 broadcast 192.168.10.255
ifconfig eth0:1 192.168.10.14   netmask 255.255.255.0 broadcast 192.168.10.255

route add -host XXX.XXX.XXX.XXX dev eth0
route add -host 192.168.10.12 dev eth0
route add -host 192.168.10.14 dev eth0
In this example 0 and 1 are aliases in addition to the regular eth0. The result of the ifconfig command:
          eth0      Link encap:Ethernet  HWaddr 00:10:4C:25:7A:3F
          inet addr:XXX.XXX.XXX.XXX  Bcast:XXX.XXX.XXX.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:14218 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1362 errors:0 dropped:0 overruns:0 carrier:0
          collisions:1 txqueuelen:100
          Interrupt:5 Base address:0xe400

eth0:0    Link encap:Ethernet  HWaddr 00:10:4C:25:7A:3F
          inet addr:192.168.10.12  Bcast:192.168.10.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          Interrupt:5 Base address:0xe400

eth0:1    Link encap:Ethernet  HWaddr 00:10:4C:25:7A:3F
          inet addr:192.168.10.14  Bcast:192.168.10.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          Interrupt:5 Base address:0xe400

Config file: /etc/sysconfig/network-scripts/ifcfg-eth0:0

DEVICE=eth0:0
ONBOOT=yes
BOOTPROTO=static
BROADCAST=192.168.10.255
IPADDR=192.168.10.12
NETMASK=255.255.255.0
NETWORK=192.168.10.0
ONBOOT=yes

Aliases can also be shut down independently. i.e.: ifdown eth0:0

The option during kernel compile is: CONFIG_IP_ALIAS=y (Enabled by default in Redhat)

Note: The Apache web server can be configured so that different IP addresses can be assigned to specific domains being hosted. See Apache configuration and "configuring an IP based virtual host" in the YoLinux Web site configuration tutorial.


DHCP Linux Client: get connection info: /sbin/pump -i eth0 --status
(Red Hat Linux 7.1 and older)

Device eth0
IP: 4.XXX.XXX.XXX
Netmask: 255.255.252.0
Broadcast: 4.XXX.XXX.255
Network: 4.XXX.XXX.0
server 131.XXX.XXX.4
Next server 0.0.0.0
Gateway: 4.XXX.XXX.1
Domain: vz.dsl.genuity.net
Nameservers: 4.XXX.XXX.1 4.XXX.XXX.2 4.XXX.XXX.3
Renewal time: Sat Aug 11 08:28:55 2001
Expiration time: Sat Aug 11 11:28:55 2001

Changing the host name:

This is a three step process:

  1. Issue the command: hostname new-host-name
  2. Change network configuration file: /etc/sysconfig/network
    Edit entry: HOSTNAME=new-host-name
  3. Restart systems which relied on the hostname (or reboot):
    • Restart network services: service network restart
      (or: /etc/init.d/network restart)
    • Restart desktop:
      • Bring down system to console mode: init 3
      • Bring up X-Windows: init 5
One may also want to check the file /etc/hosts for an entry using the system name which allows the system to be self aware.

The hostname may be changed at runtime using the command: sysctl -w kernel.hostname="superserver"

Note that hostnames may only contain alphanumeric characters, minus signs ("-"), and periods ("."). They must begin with an alphabetic character and end with an alphanumeric character.


Change the host name using GUI tool: /usr/sbin/system-config-network
(Red Hat / Fedora / CentOS)

Hostname entries are made in two places:

system-config-network
Select the "DNS" tab.

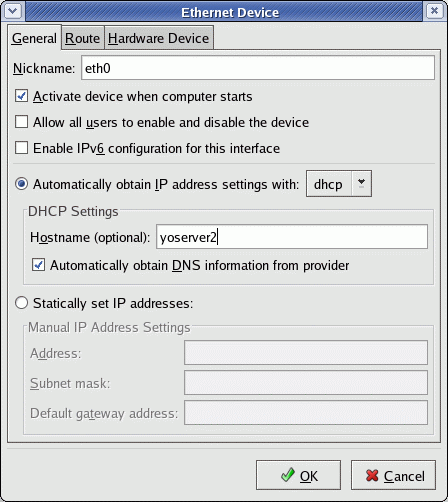

system-config-network
Select the "Devices" tab + "Edit" + the "General" tab.

Activating and De-Activating your NIC:

Commands for starting and stopping TCP/IP network services on a Network Interface Card (NIC):
  • Activate: /sbin/ifup eth0
    (Also: ifconfig eth0 up - Note: Even if no IP address is assigned you can listen.)
  • De-Activate: /sbin/ifdown eth0
    (Also: ifconfig eth0 down)
These scripts use the scripts and NIC config
files in /etc/sysconfig/network-scripts/

GUI Interface control/configuration:

  • Start/Stop network interfaces

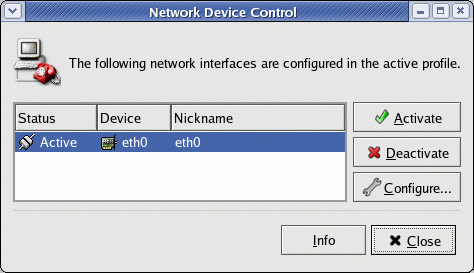

    /usr/bin/system-control-network (Fedora Core 2/3)
    /usr/bin/redhat-control-network (RH 9.0 - FC-1)
  • Configure Ethernet, ISDN, modem, token Ring, Wireless or DSL network connection:
    /usr/sbin/system-config-network-druid (FC2/3)
    /usr/sbin/redhat-config-network-druid (RH 9 - FC-1)

Subnets:

Subnetting is a methodology used to divide a network into multiple logical networks (subnets). Subnets are often defined for geographical or location reasons. Subnet masks are defined to reflect the number of computer systems and the IP addresses of the systems on the subnet.

M
A
S
K
# OF
SUB
NETS
Slash
Fmt
CLASS A
HOSTS
CLASS A
MASK
CLASS B
HOSTS
CLASS B
MASK
CLASS C
HOSTS
CLASS C
MASK
CLASS C SUB
HOSTS
CLASS C SUB
MASK
255 1
or
256
/32 16,777,214 255.0.0.0 65,534 255.255.0.0 254 255.255.255.0 Invalid
1 address
255.255.255.255
254 128 /31 33,554,430 254.0.0.0 131,070 255.254.0.0 510 255.255.254.0 Invalid
2 addresses
255.255.255.254
252 64 /30 67,108,862 252.0.0.0 262,142 255.252.0.0 1,022 255.255.252.0 2 hosts
4 addresses
255.255.255.252
248 32 /29 134,217,726 248.0.0.0 524,286 255.248.0.0 2,046 255.255.248.0 6 hosts
8 addresses
255.255.255.248
240 16 /28 268,435,454 240.0.0.0 1,048,574 255.240.0.0 4,094 255.255.240.0 14 hosts
16 addresses
255.255.255.240
224 8 /27 536,870,910 224.0.0.0 2,097,150 255.224.0.0 8,190 255.255.224.0 30 hosts
32 addresses
255.255.255.224
192 4 /26 1,073,741,822 192.0.0.0 4,194,302 255.192.0.0 16,382 255.255.192.0 62 hosts
64 addresses
255.255.255.192
128 2 /25 2,147,483,646 128.0.0.0 8,388,606 255.128.0.0 32,766 255.255.128.0 126 hosts
128 addresses
255.255.255.128

Binary position 8 7 6 5 4 3 2 1
Value 128 64 32 16 8 4 2 1
Example: 192 1 1 0 0 0 0 0 0

Example 192=128+64

Some addresses are reserved and outside this scope. Loopback (127.0.0.1), reserved class C 192.168.XXX.XXX, reserved class B 172.31.XXX.XXX and reserved class A 10.XXX.XXX.XXX.

Subnet Example:

Your ISP assigns you a subnet mask of 255.255.255.248 for your office.
  • 208.88.34.104 Network Base address
  • 208.88.34.105 Computer 1
  • 208.88.34.106 Computer 2
  • 208.88.34.107 Computer 3
  • 208.88.34.108 Computer 4
  • 208.88.34.109 Computer 5
  • 208.88.34.110 DSL router/Gateway
  • 208.88.34.111 Broadcast address
Of the eight addresses, there are six assigned to hardware systems and ultimately only five usable addresses.

Links:

Network Classes:

The concept of network classes is a little obsolete as subnets are now used to define smaller networks using CIDR (Classless Inter-Domain Routing) as detailed above. These subnets may be part of a class A, B, C, etc network. For historical reference the network classes are defined as follows:

  • Class A: Defined by the first 8 bits with a range of 0 - 127.
    First number (8 bits) is defined by Internic i.e. 77.XXX.XXX.XXX
    One class A network can define 16,777,214 hosts.
    Range: 0.0.0.0 - 127.255.255.255
  • Class B: Defined by the first 8 bits with a range from 128 - 191
    First two numbers (16 bits) are defined by Internic i.e. 182.56.XXX.XXX
    One class B network can define 65,534 hosts.
    Range: 128.0.0.0 - 191.255.255.255
  • Class C: Defined by the first 8 bits with a range from 192 - 223
    First three numbers (24 bits) are defined by Internic i.e. 220.56.222.XXX
    One class B network can define 254 hosts.
    Range: 192.0.0.0 - 223.255.255.255
  • Class D: Defined by the first 8 bits with a range from 224 - 239
    This is reserved for multicast networks (RFC988)
    Range: 224.0.0.0 - 239.255.255.255
  • Class E: Defined by the first 8 bits with a range from 240 - 255
    This is reserved for experimental use.
    Range: 240.0.0.0 - 247.255.255.255

Enable Forwarding:
Forwarding allows the network packets on one network interface (i.e. eth0) to be forwarded to another network interface (i.e. eth1). This will allow the Linux computer to connect ("ethernet bridge") or route network traffic.

The bridge configuration will merge two (or several) networks into one single network topology. IpTables firewall rules can be used to filter traffic.

A router configuration can support multicast and basic IP routing using the "route" command. IP masquerading (NAT) can be used to connect private local area networks (LAN) to the internet or load balance servers.

  • Turn on IP forwarding to allow Linux computer to act as a gateway or router.
    echo 1 > /proc/sys/net/ipv4/ip_forward
    Default is 0. One can add firewall rules by using iptables (or ipchains).

    Another method is to alter the Linux kernel config file: /etc/sysctl.conf Set the following value:

    net.ipv4.ip_forward = 1

    See file /etc/sysconfig/network for storing this configuration.

    FORWARD_IPV4=true
    Change the default "false" to "true".

All methods will result in a proc file value of "1". Test: cat /proc/sys/net/ipv4/ip_forward

The TCP Man page - Linux Programmer's Manual and /usr/src/linux/Documentation/proc.txt (Kernel 2.2 RH 7.0-) cover /proc/sys/net/ipv4/* file descriptions.

Also see: (YoLinux tutorials)

Adding a network interface card (NIC):

Manual method: This does not alter the permanent configuration and will only configure support until the next reboot.

  • cd /lib/modules/2.2.5-15/net/ - Use kernel version for your system. This example uses 2.2.5-15
    (Fedora Core 3: /lib/modules/2.6.12-1.1381_FC3/kernel/net/)
    Here you will find the modules supported by your system.
    It can be permanently added to:
    • /etc/modprobe.conf (kernel 2.6)
    • /etc/modules.conf (kernel 2.4)
    • (or for older systems: /etc/conf.modules)
    Example:
        alias eth0 3c59x
  • /sbin/insmod 3c59x (For a 3Com ethernet card)
    This inserts the specified module into the kernel.
  • /sbin/modprobe 3c59x
    This also loads a module into the system kernel.
    Modprobe command line options:
    • -r : to unload the module.
    • /sbin/modprobe -l \* : list all modules.
    • /sbin/modprobe -lt net \* : List only network modules
    • /sbin/modprobe -t net \* : Try loading all network modules and see what sticks. (act of desperation)
  • ifconfig ...

The easy way: Red Hat versions 6.2 and later, ship with Kudzu, a device detection program which runs during system initialization. (/etc/rc.d/init.d/kudzu) This can detect a newly installed NIC and load the appropriate driver. Then use /usr/sbin/netconfig to configure the IP address and network settings. The configuration will be stored so that it will be utilized upon system boot.

Systems with two NIC cards: Typically two cards are used when connecting to two networks. In this case the device must be defined using one of three methods:

  1. Use the Red Hat GUI tool /usr/bin/netcfg

    OR

  2. Define network parameters in configuration files:

    Define new device in file (Red Hat/Fedora) /etc/sysconfig/network-scripts/ifcfg-eth1
    (S.u.s.e 9.2: /etc/sysconfig/network/ifcfg-eth-id-XX:XX:XX:XX:XX)

    DEVICE=eth1
    BOOTPROTO=static
    IPADDR=192.168.10.12
    NETMASK=255.255.255.0
    GATEWAY=XXX.XXX.XXX.XXX
    HOSTNAME=node-name.name-of-domain.com
    DOMAIN=name-of-domain.com

    Special routing information may be specified, if necessary, in the file
    (Red Hat/Fedora): /etc/sysconfig/static-routes
    (S.u.s.e. 9.2: /etc/sysconfig/network/routes)

    Example:

    eth1 net XXX.XXX.XXX.0 netmask 255.255.255.0 gw XXX.XXX.XXX.XXX


    OR

  3. Define network parameters using Unix command line interface:

    Define IP address:

        ifconfig eth0  XXX.XXX.XXX.XXX netmask 255.255.255.0 broadcast XXX.XXX.XXX.255
    ifconfig eth1 192.168.10.12 netmask 255.255.255.0 broadcast 192.168.10.255

    If necessary, define route with with the route command:
    Examples:

      route add default gw XXX.XXX.XXX.XXX dev eth0
      route add  -net  XXX.XXX.XXX.0  netmask 255.255.255.0 gw XXX.XXX.XXX.XXX dev eth0

    Where XXX.XXX.XXX.XXX is the gateway to the internet as defined by your ISP or network operator.

    If a mistake is made just repeat the route command substituting "del" in place of "add".

Configuring your NIC: Speed and Duplex settings:

This is usually not necessary because most ethernet adapters can auto-negotiate link speed and duplex setting.

  • List NIC speed and configuration: mii-tool
    eth0: negotiated 100baseTx-FD flow-control, link ok

    Verbose mode: mii-tool -v

    eth0: negotiated 100baseTx-FD flow-control, link ok
    product info: Intel 82555 rev 4
    basic mode:   autonegotiation enabled
    basic status: autonegotiation complete, link ok
    capabilities: 100baseTx-FD 100baseTx-HD 10baseT-FD 10baseT-HD
    advertising:  100baseTx-FD 100baseTx-HD 10baseT-FD 10baseT-HD flow-control
    link partner: 100baseTx-FD 100baseTx-HD 10baseT-FD 10baseT-HD flow-control

  • Set NIC configuration: mii-tool -F option
    Option Parameters
    -F 100baseTx-FD
    100baseTx-HD
    10baseT-FD
    10baseT-HD
    -A 100baseT4
    100baseTx-FD
    100baseTx-HD
    10baseT-FD
    10baseT-HD

Man Pages:

  • mii-tool - view, manipulate media-independent interface status

Query NIC with ethtool:

Command Description
ethtool -g eth0 Queries ethernet device for rx/tx ring parameter information.
ethtool -a eth0 Queries ethernet device for pause parameter information.
ethtool -c eth0 Queries ethernet device for coalescing information.
ethtool -i eth0 Queries ethernet device for associated driver information.
ethtool -d eth0 Prints a register dump for the specified ethernet device.
ethtool -k eth0 Queries ethernet device for offload information.
ethtool -S eth0 Queries ethernet device for NIC and driver statistics.
ethtool -p eth0 This command is used to identify the ethernet hardware port associated with the device specified by blinking the LED on the port.

Man Pages:

  • ethtool - Display or change ethernet card settings

VPN, Tunneling:

Useful Linux networking commands:
  • /etc/rc.d/init.d/network   start - command to start, restart or stop the network
  • netstat - Display connections, routing tables, stats etc
    • List externally connected processes: netstat -punta
      • -a: Show both listening and non-listening sockets.
      • -p: Show PID of process owning socket
      • -u: Show UDP
      • -t: Show TCP
      • -n: Show IP addresses only. Don't resolve host names
      • -g: Show multi-cast group membership info
      • -c: Continuous mode - update info every second
      • -v: Verbose
      • -e: Extended information
      • -o: show network timer information
    • List all connected processes: netstat -nap
    • List all processes with a TCP connection: netstat -tlnp
      This will list open TCP ports:
      • -t: TCP
      • -l: listening ports only
      • -n: no host name lookup
      • -p: process ID
      one can also use the command: lsof -i -P
    • Show network statistics: netstat -s
    • Display routing table info: netstat -rn
      $ netstat -nr
      Kernel IP routing table
      Destination     Gateway         Genmask         Flags   MSS Window  irtt Iface
      192.168.1.0     0.0.0.0         255.255.255.0   U         0 0          0 eth0
      169.254.0.0     0.0.0.0         255.255.0.0     U         0 0          0 eth0
      0.0.0.0         192.168.1.1     0.0.0.0         UG        0 0          0 eth0

      Flags:
      • G: route uses gateway
      • U: Interface is "up"
      • H: Only a single host is accessible (eg. loopback)
      • D: Entry generated by ICMP redirect message
      • M: Modified by ICMP redirect message
    • Display processes connecting with ssh (port 22): netstat -aon | grep ':22 '
      $ netstat -aon | grep :22
      tcp        0      0 0.0.0.0:22                  0.0.0.0:*                   LISTEN      off (0.00/0/0)
      tcp        0     36 172.131.56.120:22           118.57.17.204:37951         ESTABLISHED on (0.24/0/0)
      tcp        0      0 172.131.56.120:22           116.31.114.52:46438         ESTABLISHED keepalive (7160.36/0/0)
      tcp        0      0 172.131.56.120:22           116.31.114.52:64874         ESTABLISHED keepalive (7209.52/0/0)
      tcp        0      0 :::22                       :::*                        LISTEN      off (0.00/0/0)

      • -a: Show both listening and non-listening sockets.
      • -o: show network timer information
      • -n: no host name lookup
      Note that a "connection" does not mean that there was a successful login.
    • Display interface statistics: netstat -i
      $ netstat -i
      Kernel Interface table
      Iface       MTU Met    RX-OK RX-ERR RX-DRP RX-OVR    TX-OK TX-ERR TX-DRP TX-OVR Flg
      eth0       1500   0     2224      0      0      0     1969      0      0      0 BMRU
      lo        16436   0     1428      0      0      0     1428      0      0      0 LRU

      Where:
      • RX-OK/TX-OK: number of packets transmitted/received error free
      • RX-ERR/TX-ERR: number of damaged/error packets transmitted/received
      • RX-DRP/TX-DRP: number of dropped packets
      • RX-OVR/TX-OVR: number of packets dropped because of a buffer overrun
      Flags:
      • B: A broadcast address has been set
      • L: This interface is a loopback device
      • M: All packets are received
      • N: Trailers are avoided
      • O: ARP is turned off for this interface
      • P: Point-to-point connection
      • R: Interface is running
      • U: Interface is up
  • rtstat/lnstat - unified linux network statistics
    (reports contents of /proc/net/stat/ and routing cache statistics)
  • nstat/rtacct - network statistics tools
    (monitor kernel snmp counters and network interface statistics)
  • ping - send ICMP ECHO_REQUEST packets to network hosts. Use Cntl-C to stop ping.
  • traceroute - print the route packets take to network host.
    (Ubuntu Note: Typically Ubuntu installs tracepath for IPv4 and traceroute6 for IPv6. One can install traceroute: apt-get install traceroute)
    • traceroute IP-address-of-server
    • traceroute domain-name-of-server
  • mtr - a network diagnostic tool introduced in Fedora - Like traceroute except it gives more network quality and network diagnostic info. Leave running to get real time stats. Reports best and worst round trip times in milliseconds.
    • mtr IP-address-of-server
    • mtr domain-name-of-server
      Example: mtr --report www.yahoo.com
      [prompt]$ mtr --report www.yahoo.com
      Start: Sun May 22 19:26:58 2016
      HOST: mydesktop                   Loss%   Snt   Last   Avg  Best  Wrst StDev
        1.|-- Wireless_Broadband_Router  0.0%    10    0.4   0.4   0.3   0.4   0.0
        2.|-- 61.218.111.1               0.0%    10    4.3   5.4   3.2   9.4   1.9
        3.|-- 142.202.104.222            0.0%    10    6.7   7.5   6.1   9.9   0.9
        4.|-- ae8---0.scr02.lsan.ca.fro  0.0%    10    6.1   7.1   6.1   8.2   0.6
        5.|-- ae1---0.cbr01.lsan.ca.fro  0.0%    10    7.4   7.7   5.7  16.6   3.1
        6.|-- lag-101.ear2.LosAngeles1. 80.0%    10    6.0   9.5   6.0  13.0   4.9
        7.|-- ae-1-51.ear3.Seattle1.Lev 90.0%    10   32.4  32.4  32.4  32.4   0.0
        8.|-- YAHOO-INC.ear3.Seattle1.L  0.0%    10   34.2  33.1  31.7  35.1   0.9
        9.|-- ae-7.pat1.gqb.yahoo.com    0.0%    10   36.7  35.9  35.1  36.9   0.3
       10.|-- et-1-0-0.msr2.gq1.yahoo.c  0.0%    10   37.5  39.3  36.6  57.1   6.2
       11.|-- et-1-0-0.clr1-a-gdc.gq1.y  0.0%    10   37.2  49.1  37.2 119.3  26.0
       12.|-- et-18-1.fab7-1-gdc.gq1.ya  0.0%    10   38.5  38.1  36.9  39.9   0.7
       13.|-- po-15.bas1-7-prd.gq1.yaho  0.0%    10   38.0  37.4  36.6  38.5   0.0
       14.|-- ir1.fp.vip.gq1.yahoo.com   0.0%    10   40.5  37.9  36.7  40.5   1.1

    Installation packages: Ubuntu: mtr-tiny, RH/CentOS: mtr
  • whois - Lookup a domain name in the internic whois database.
  • finger - Display information on a system user. i.e. finger user@host Uses $HOME/.plan and $HOME/.project user files.
  • iptables - IP firewall administration (Linux kernel 2.6/2.4) See YoLinux firewall/gateway configuration.
  • ipchains - IP firewall administration (older Linux kernel 2.2) See YoLinux firewall/gateway configuration.
  • host - Give a host name and the command will return IP address. Unlike nslookup, the host command will use both /etc/hosts as well as DNS.
    Example: host domain-name-of-server
  • nslookup - Give a host name and the command will return IP address. Also see Testing your DNS (YoLinux Tutorial) Note that nslookup does not use the /etc/hosts file.

inetd/xinetd: Network Socket Listener Daemons:

The network listening daemons listen and respond to all network socket connections made on the TCP/IP ports assigned to it. The ports are defined by the file /etc/services. When a connection is made, the listener will attempt to invoke the assigned program and pipe the data to it. This simplified matters by allowing the assigned program to read from stdin instead of making its own sockets connection. The listener handles the network socket connection. Two network listening and management daemons have been used in Red Hat Linux distributions:

  • inetd: Red Hat 6.x and older
  • xinetd: Red Hat 7.0-9.0, RHEL 5-8, Fedora

inetd:

Configuration file: /etc/inetd.conf
Entries in this file consist of a single line made up of the following fields:
        service socket-type protocol wait user server cmdline

  • service: The name assigned to the service. Matches the name given in the file /etc/services
  • socket-type:
    • stream: connection protocols (TCP)
    • dgram: datagram protocols (UDP)
    • raw
    • rdm
    • seqpacket
  • protocol: Transport protocol name which matches a name in the file /etc/protocols. i.e. udp, icmp, tcp, rpc/udp, rpc/tcp, ip, ipv6
  • wait: Applies only to datagram protocols (UDP).
    • wait[.max]: One server for the specified port at any time (RPC)
    • nowait[.max]: Continue to listen and launch new services if a new connection is made. (multi-threaded)
    Max refers to the maximum number of server instances spawned in 60 seconds. (default=40)
  • user[.group]: login id of the user the process is executed under. Often nobody, root or a special restricted id for that service.
  • server: Full path name of the server program to be executed.
  • cmdline: Command line to be passed to the server. This includes argument 0 (argv[0]), that is the command name. This field is empty for internal services. Example of internal TCP services: echo, discard, chargen (character generator), daytime (human readable time), and time (machine readable time). (see RFC)

Sample File: /etc/inetd.conf

#echo   stream  tcp     nowait  root    internal
#echo   dgram   udp     wait    root    internal

ftp     stream  tcp     nowait  root    /usr/sbin/tcpd  in.ftpd -l -a
#pop-3   stream  tcp     nowait  root    /usr/sbin/tcpd ipop3d
#swat      stream  tcp     nowait.400      root /usr/sbin/swat swat

A line may be commented out by using a '#' as the first character in the line. This will turn the service off. The maximum length of a line is 1022 characters.

The inet daemon must be restarted to pick up the changes made to the file:
/etc/rc.d/init.d/inetd restart

For more information see the man pages "inetd" and "inetd.conf".

xinetd: Extended Internet Services Daemon:
Xinetd has access control mechanisms, logging capabilities, the ability to make services available based on time, and can place limits on the number of servers that can be started, redirect services to different ports and network interfaces (NIC) or even to a different server, chroot a service etc... and thus a worthy upgrade from inetd.

Use the command chkconfig --list to view all system services and their state. It will also list all network services controlled by xinetd and their respective state under the title "xinetd based services". (Works for xinetd (RH7.0+) but not inetd)

The xinetd network daemon uses PAM also called network wrappers which invoke the /etc/hosts.allow and /etc/hosts.deny files.

Configuration file: /etc/xinetd.conf which in turn uses configuration files found in the directory /etc/xinetd.d/.

To turn a network service on or off:

  • Edit the file /etc/xinetd.d/service-name
    Set the disable value:
    disable = yes
    or
    disable = no Restart the xinetd process using the signal:
    • SIGUSR1 (kill -SIGUSR1 process-id) - Soft reconfiguration does not terminate existing connections. (Important if you are connected remotely)
    • SIGUSR2 - Hard reconfiguration stops and restarts the xinetd process.
    (Note: Using the HUP signal will terminate the process.)
    OR
  • Use the chkconfig command: chkconfig service-name on
    (or off)
    This command will also restart the xinetd process to pick up the new configuration.

The file contains entries of the form:

      service service-name
      {
         attribute  assignment-operator value value ...
         ...
      {

Where:
  • attribute:
    • disable:
      • yes
      • no
    • type:
      • RPC
      • INTERNAL:
      • UNLISTED: Not found in /etc/rpc or /etc/services
    • id: By default the service id is the same as the service name.
    • socket_type:
      • stream: TCP
      • dgram: UDP
      • raw: Direct IP access
      • seqpacket: service that requires reliable sequential datagram transmission
    • flags: Combination of: REUSE, INTERCEPT, NORETRY, IDONLY, NAMEINARGS, NODELAY, DISABLE, KEEPALIVE, NOLIBWRAP.
      See the xinetd man page for details.
    • protocol: Transport protocol name which matches a name in the file /etc/protocols.
    • wait:
      • no: multi-threaded
      • yes: single-threaded - One server for the specified port at any time (RPC)
    • user: See file : /etc/passwd
    • group: See file : /etc/group
    • server: Program to execute and receive data stream from socket. (Fully qualified name - full path name of program)
    • server_args: Unlike inetd, arg[0] or the name of the service is not passed.
    • only_from: IP address, factorized address, netmask range, hostname or network name from file /etc/networks.
    • no_access: Deny from ... (inverse of only_from)
    • access_times
    • port: See file /etc/services
    Also: log_type, log_on_success, log_on_failure (Log options: += PID,HOST,USERID,EXIT,DURATION,ATTEMPT and RECORD), rpc_version, rpc_number, env, passenv, redirect, bind, interface, banner, banner_success, banner_fail, per_source, cps, max_load, groups, enabled, include, includedir, rlimit_as, rlimit_cpu, rlimit_data, rlimit_rss, rlimit_stack.
    The best source of information is the man page and its many examples.
  • assignment-operator:
    • =
    • +=: add a value to the set of values
    • -=: delete a value from the set of values

Then restart the daemon: /etc/rc.d/init.d/xinetd restart

Example from man page: Limit telnet sessions to 8 Mbytes of memory and a total 20 CPU seconds for child processes.

service telnet
{
      socket_type         = stream
      wait                = no
      nice                = 10
      user                = root
      server              = /usr/etc/in.telnetd
      rlimit_as           = 8M
      rlimit_cpu          = 20
}


[Pitfall] Red Hat 7.1 with updates as of 07/06/2001 required that I restart the xinetd services before FTP would work properly even though xinetd had started without failure during the boot sequence. I have no explanation as to why this occurs or how to fix it other than to restart xinetd: /etc/rc.d/init.d/xinetd restart.

Man Pages:

For more info see:

Remote commands: rcp, rsh, rlogin, rwho, ...

Most of the original Unix remote commands have been superceded by secure shell equivalents. Instead of telnet, rsh or rlogin, one should use the encrypted connection ssh.

  • telnet - user interface to the TELNET protocol
  • rlogin - remote login
  • rsh - remote shell to execute a command and return results
  • uux - Remote command execution over UUCP
  • rcp - remote file copy
  • uucp - Unix to Unix copy (AWS and RHEL EPEL repo)
    uuxqt - UUCP execution daemon
    uucico - UUCP file transfer daemon
    cu - Call up another system (cu is an old legacy command which is reported to not work very well)
See the YoLinux.com secure shell tutorial for use of ssh, rssh, scp and sftp

RWHO: Remote Who daemon - rwhod

The "rwho" command is used to display users logged into computers on your LAN.

By default, Red Hat Linux has the network interface to the rwhod disabled. Thus if one issues the command "rwho", you will only see who is logged into the system you are logged into and not remote systems on the network. This is a safe approach for internet servers as it reduces the exposure of a service which could be exploited by hackers. If you wish to use rwhod on a local private and firewall protected network, here is how:

Allow broadcast capabilities. Edit /etc/init.d/rwhod
change from: daemon rwhod
to: daemon rwhod -b

Start service:

  • Set service to start with system boot: chkconfig --level 345 rwhod on
  • Start rwhod service: service rwhod start
    (or: service rwhod restart)

Man pages:

  • rwho: who is logged in on local network machines
  • rwhod: system status server
  • who: show who is logged on to the same system

RPC: Remote Procedure Calls with rpcbind (current) / portmapper (older RHEL5-)

Rpcbind or portmapper are required to manage RPC (Remote Procedure Call) requests from services like NFS (file sharing services), NIS (Network Information Services) and SAMBA.

rpcbind is newer and used on RHEL 6,7 / Ubuntu 10.04, 12.04, 14.04 and later systems while portmapper was used on RHEL5 or prior systems. Rpcbind and portmapper are both server based services which manages RPC program number requests and returns universal addresses. The rpc service tells rpcbind the address on which it is listening and the RPC program numbers it will serve. Clients first contact rpcbind to lookup where its request should be sent.

An RPC server makes available a collection of procedures (programs) that a client system may call and then receive the returned results. The list of services available is listed in /etc/rpc on the server. The message communication is in a machine independent form called XDR (External Data Representation format).

  • rpcbind server:
    • Install service:
      • RHEL6+: sudo yum install rpcbind
      • Ubuntu: sudo apt-get install rpcbind
    • Start service:
      • /etc/init.d/rpcbind start
      • service rpcbind start (Red Hat/Fedora)
  • portmap server:
    • /etc/init.d/portmap start
    • service portmap start (Red Hat/Fedora)

List RPC services supported: [root]# rpcinfo -p localhost
   program vers proto   port  service
    100000    4   tcp    111  portmapper
    100000    3   tcp    111  portmapper
    100000    2   tcp    111  portmapper
    100000    4   udp    111  portmapper
    100000    3   udp    111  portmapper
    100000    2   udp    111  portmapper
    100024    1   udp  36133  status
    100024    1   tcp  47367  status
...
...

Man Pages:

  • rpc - Remote Procedure Call
  • rpcinfo - report RPC information
  • /etc/rpc - rpc program number data base
  • xdr - Remote Procedure Call
  • rpcbind:
    • rpcbind - port to RPC program number mapper service
  • portmapper:
    • portmap - DARPA port to RPC program number mapper service
    • pmap_dump - print a list of all registered RPC programs
    • pmap_set - set the list of registered RPC programs

PAM: Network Wrappers:

Pluggable Authentication Modules for Linux (TCP Wrappers)

This system allows or denies network access. One can reject or allow specific IP addresses or subnets to access your system.

File: /etc/hosts.allow

   in.ftpd:208.188.34.105
This specifically allows the given IP address to ftp to your system. One can also specify an entire domain. i.e. .name-of-domain.com
Note the beginning ".".

File: /etc/hosts.deny

   ALL:ALL
This generally denies any access.

See the pam man page.

File: /etc/inetd.conf

ftp     stream  tcp     nowait  root    /usr/sbin/tcpd  in.ftpd -l -a

The inet daemon accepts the incoming network stream and assigns it to the PAM TCP wrapper, /usr/sbin/tcpd, which accepts or denies the network connection as defined by /etc/hosts.allow and /etc/hosts.deny and then passes it along to ftp. This is logged to /var/log/secure


Advanced PAM: More specific access can be assigned and controlled by controlling the level of authentication required for access.

Files reflect the inet service name. Rules and modules are stacked to achieve the level of security desired.

See the files in /etc/pam.d/... (some systems use /etc/pam.conf)

The format: service type control module-path module-arguments

  • auth - (type) Password is required for the user
    • nullok - Null or non-existent password is acceptable
    • shadow - encrypted passwords kept in /etc/shadow
  • account - (type) Verifies password. Can track and force password changes.
  • password - (type) Controls password update
    • retry=3 - Sets the number of login attempts
    • minlen=8 - Set minimum length of password
  • session - (type) Controls monitoring

Modules:

  • /lib/security/pam_pwdb.so - password database module
  • /lib/security/pam_shells.so -
  • /lib/security/pam_cracklib.so - checks is password is crackable
  • /lib/security/pam_listfile.so

After re-configuration, restart the inet daemon: killall -HUP inetd

For more info see:

ICMP:

ICMP is the network protocol used by the ping and traceroute commands.

ICMP redirect packets are sent from the router to the host to inform the host of a better route. To enable ICMP redirect, add the following line to /etc/sysctl.conf :

net.ipv4.conf.all.accept_redirects = 1

Add the following to the file: /etc/rc.d/rc.local

for f in /proc/sys/net/ipv4/conf/*/accept_redirects
do
   echo 1 > $f
done


Command to view Kernel IP routing cache: /sbin/route -Cn

NOTE: This may leave you vulnerable to hackers as attackers may alter your routes.

Blocking ICMP and look invisible to ping:

The following firewall rules will drop ICMP requests.

Iptables:
iptables -A OUTPUT -p icmp -d 0/0 -j DROP
Ipchains:
ipchains -A output -p icmp -d 0/0 -j DENY
OR drop all incoming pings:
echo 1 > /proc/sys/net/ipv4/icmp_echo_ignore_all
This is sometimes necessary to look invisible to DOS (Denial Of Service) attackers who use ping to watch your machine and launch an attack when it's presence is detected

Traffic Control (TC) and TC New Generation (TCNG):

TC:

Install:
  • Ubuntu/Debian: apt-get install iproute
  • Red Hat/CentOS/Fedora: yum install iproute
Description:

The Linux Kernel is capable of controlling bandwidth peaks, traffic prioritization and scheduling and if necessary, dropping excess traffic, all using the traffic control command "tc" to manage a set of queues (default queue: pfifo_fast).

Bandwidth control is called traffic shaping. This is often done to avoid exceeding the bandwidth when sending traffic to a particular device such as a wireless modem during peak network bursts.

Traffic prioritization includes reordering network packets so that certain traffic is guarenteed to be sent by a given time.

Packet dropping can be performed on ingress and egress packets to achieve a desired bandwidth.

Examples: limit data rate to 4 Mbps so that data rate does not exceed the capability of a wireless networking device:
  • tc class add dev eth1 parent 1:0 classid 1:1 htb rate 4.0mbit prio 0
    Create main class 1:1 with the assigned datarate 4 Mbit/sec
  • tc filter add dev eth1 parent 1:0 prio 0 protocol ip u32 match ip dst 192.168.1.20/32 match ip protocol ip 0xffff flowid 1:10
    Create filter assigned to class 1:0 and 1:1
Man Pages: The command is "tc". The rest of the man pages describe specific uses of the command.
  • tc - show or manipulate network traffic control settings
  • tc-cbq - CBQ - Class Based Queueing - contains shaping elements as well as prioritizing capabilities.
    tc qdisc ... dev dev ( parent classid | root) [ handle major: ] cbq [ allot bytes ] avpkt bytes bandwidth rate [ cell bytes ] [ ewma log ] [ mpu bytes ]
    tc class ... dev dev parent major:[minor] [ classid major:minor ] cbq allot bytes [ bandwidth rate ] [ rate rate ] prio priority [ weight weight ] [ minburst packets ] [ maxburst packets ] [ ewma log ] [ cell bytes ] avpkt bytes [ mpu bytes ] [ bounded isolated ] [ split handle & defmap defmap ] [ estimator interval timeconstant ]
  • tc-htb - Hierarchy Token Bucket (simple replacement for CBQ)
    tc qdisc ... dev dev ( parent classid | root) [ handle major: ] htb [ default minor-id ]
    tc class ... dev dev parent major:[minor] [ classid major:minor ] htb rate rate [ ceil rate ] burst bytes [ cburst bytes ] [ prio priority ]
  • tc-drr - deficit round robin scheduler - flexible replacement for Stochastic Fairness Queuing
    tc qdisc ... add drr [ quantum bytes ]
  • tc-sfq - Stochastic Fairness Queueing
    tc qdisc ... divisor hashtablesize limit packets perturb seconds quan‐tum bytes
  • tc-hfsc - HFSC - Hierarchical Fair Service Curve's control
    tc qdisc add ... hfsc [ default CLASSID ]
    tc class add ... hfsc [ [ rt SC ] [ ls SC ] | [ sc SC ] ] [ ul SC ]
  • tc-choke - CHOose and KEep scheduler - classless qdisc designed to both identify and penalize flows that monopolize the queue. CHOKe is a variation of RED, and the configuration is the same as RED
    tc qdisc ... choke limit bytes min bytes max bytes avpkt bytes burst packets [ ecn ] [ bandwidth rate ] probability chance
  • tc-red - Random Early Detection - classless qdisc to drop packets gracefully
    tc qdisc ... red limit bytes min bytes max bytes avpkt bytes burst packets [ ecn ] [ bandwidth rate ] probability chance
  • tc-tbf - tbf - Token Bucket Filter - Traffic shaper to ensure that the configured rate is not exceeded
    tc qdisc ... tbf rate rate burst bytes/cell ( latency ms | limit bytes) [ mpu bytes [ peakrate rate mtu bytes/cell ] ]
  • tc-pfifo / tc-bfifo - The pfifo and bfifo qdiscs are low overhead First In, First Out queues.
    • pfifo - Packet limited First In, First Out queue:
      tc qdisc ... add pfifo [ limit packets ]
    • bfifo - Byte limited First In, First Out queue
      tc qdisc ... add bfifo [ limit bytes ]
  • tc-pfifo_fast - default qdisc of each interface - three-band first in, first out queue
  • tc-stab - Generic size table manipulations
    tc qdisc add ... stab [ mtu BYTES ] [ tsize SLOTS ] [ mpu BYTES ] [ overhead BYTES ] [ linklayer TYPE ] ...

TCNG:

The goals of tcng are provide a network configuration language. Tcng takes input from a script to be parsed and actions delegated to lower level components and to eventual kernel module directives.
tcng home page

Install:
Ubuntu/Debian: apt-get install tcng

Man Pages:
  • tcng - Traffic Control New Generation - show or manipulate network traffic control settings

Network Monitoring Tools:

  • tcpdump - dump traffic on a network. See discussion below.
    Command line option Description
    -c Exit after receiving count packets.
    -C Specify size of output dump files.
    -i Specify interface if multiple exist. Lowest used by default. i.e. eth0
    -w file-name Write the raw packets to file rather than parsing and printing them out.
    They can later be printed with the -r option.
    -n Improve speed by not performing DNS lookups. Report IP addresses.
    -t Don't print a timestamp on each dump line.

    Filter expressions:
    primitive Description
    host host-name If host has multiple IP's, all will be checked.
    net network-number Network number.
    net network-number mask mask Network number and netmask specified.
    port port-number Port number specified.
    tcp Sniff TCP packets.
    udp Sniff UDP packets.
    icmp Sniff icmp packets.

    Examples:

    • tcpdump tcp port 80 and host server-1
    • tcpdump ip host server-1 and not server-2
  • iptraf - Interactive Colorful IP LAN Monitor
  • nmap - Network exploration tool and security scanner
    • List pingable nodes on network: nmap -sP 192.168.0.0/24
      Scans network for IP addresses 192.168.0.0 to 192.168.0.255 using ping.
  • Wireshark - Network protocol analyzer. Examine data from a live network.
    RPM's required:
    • wireshark
    • wireshark-gnome
    • Also: gtk+, glib, glibc, XFree86-libs-x.x.x-x (base install)
  • EtherApe - Graphical network monitor for Unix modeled after etherman. This is a great network discovery program with cool graphics.
  • Gkrellm - Network and system monitor. Good for monitoring your workstation.
  • IPTraf - ncurses-based IP LAN monitor.
  • Cheops - Network discovery, location, diagnosis and management. Cheops can identify all of the computers that are on your network, their IP address, their DNS name, the operating system they are running. Cheops can run a port scan on any system on your network.
  • ntop - Shows network usage in a way similar to what top does for processes. Monitors how much data is being sent and received on your network.
  • MRTG - Multi Router Traffic Grapher - Monitor network traffic load using SNMP and generate an HTML/GIF report.
  • dnsad - IP traffic capture. Export to Cisco Netflow for network analysis reporting.
  • Big Brother - Monitoring ans services availability.
  • OpenNMS.org - Network Management using SNMP.
  • Nagios - host, service and network monitoring
  • Angel network monitor


Using tcpdump to monitor the network:

[root]# ifconfig eth0 promisc          - Put nic into promiscuous mode to sniff traffic.
[root]# tcpdump -n host not XXX.XXX.XXX.XXX | more    - Sniff net but ignore IP which is your remote session.
[root]# ifconfig eth0 -promisc         - Pull nic out of promiscuous mode.


Network Intrusion and Hacker Detection Systems:

SNORT: Monitor the network, performing real-time traffic analysis and packet logging on IP networks for the detection of an attack or probe.

  • InterSect Alliance - Intrusion analysis. Identifies malicious or unauthorized access attempts.

ARP: Address Resolution Protocol

Ethernet hosts use the Address Resolution Protocol (ARP) to convert a 32-bit internet IP addresses into a 48-bit Ethernet MAC address used by network hardware. (See: RFC 826) ARP broadcasts are sent to all hosts on the subnet by the data transmitting host to see who replies. The broadcast is ignored by all except the intended receiver which recognizes the IP address as its own. The MAC addresses are remembered (ARP cache) for future network communications. Computers on the subnet typically keep a cache of ARP responses (typically 20 min but can store permanent information for diskless nodes). ARP broadcasts are passed on by hubs and switches but are blocked by routers.

Reverse ARP (See: RFC 903) is a bootstrap protocol which allows a client to broadcast requesting a server to reply with its IP address.

View ARP tables:

  • Command /sbin/arp
    • Shows other systems on your network (including IP address conflicts): /sbin/arp -a
    • Show ARP table Linux style: /sbin/arp -e
    • List ARP table: cat /proc/net/arp
  • Command /sbin/ip
    • Shows other systems on your network (including IP address conflicts): /sbin/ip neigh show
Note that the use of a switch instead of a hub will limit your view of other hosts. Typically all you will see in the arp table is your router or gateway.

Set/Configure ARP tables:

  • Command /sbin/arp
    • Add a host's IP address: /sbin/arp -s hostname XX:XX:XX:XX:XX:XX pub
    • Delete a host from the table: /sbin/arp -d hostname
      This can be used to remove a duplicate IP or force a new interface to provide info.
  • Command /sbin/ip
    • Add new ARP entry: ip neigh add 192.168.10.12 lladdr f8:e4:30:38:1c:13 dev eth0 nud perm
      (Format: ip neigh add {IP-HERE} lladdr {MAC/LLADDRESS} dev {DEVICE} nud {STATE})
      Where STATE:
      • permanent/perm: The neighbour entry is valid forever and can be only be removed administratively
      • noarp: No attempts to validate this entry will be made
      • stale: The neighbour entry is valid but suspicious
      • reachable: The neighbour entry is valid until the reachability timeout expires
    • Delete a ARP entry: ip neigh del 192.168.10.15 dev eth0
    • Flush ARP entry: ip -stats neigh flush 192.168.10.5

Man pages:

ARP is something that simply works. No Linux system configuration is necessary. It's all part of the ethernet and IP protocol. The aforementioned information is just part of the Linux culture of full visibility into what is going on.

TCP vs UDP:

Transmission Control Protocol (TCP) is a network transport Internet Protocol (IP) typically used for its bi-directional communications reliability. TCP is a protocol which first establishes a connection and then transmits data over that connection. Replies of acknowledgement are sent to each end of the connection to communicate the fact that the transmitted data was valid to determine if the data should be re-sent. The TCP header is 24 bytes of information including the source and destination port, the packet sequence information, checksum and various flags indicating the purpose of the packet. TCP is a streaming protocol where a numbered set of packets are sent over the network and available to the system in-order. This makes TCP appropriate for file transfer and web content delivery.

User Datagram Protocol (UDP) is a protocol which supports a single packet of data with no response, verification or acknowledgement. A checksum is included in the UDP packet header but the protocol does not arrange for retransmission upon error. It is a faster communications method as it does not require the overhead of a connection, reliability or packet order. Each packet is independent of the other and typically used for data no larger than the maximum UDP packet size of 64 Kb (65507 bytes) for the 8 byte header and data, but typically much smaller.

IPv4 Packet Headers:

TCP:

Source Port
16 bits
(0 - 65535)
Destination Port
16 bits
(0 - 65535)
Sequence Number
32 bits
(0 - 4294967295) Increments from 1, zero to clear.
Acknowledgement Number
32 bits
(0 - 4294967295)
Data
Offset
Res N
S

C
W
R
E
C
E
U
R
G
A
C
K
P
S
H
R
S
T
S
Y
N
F
I
N
Window
16 bits
Checksum
16 bits
Urgent Pointer
(If URG is set)
16 bits
Options Padding

Flags:
  • SYN: signifies first packet sent when opening a connection
  • ACK: After SYN packet is sent, ACK is set to 1
  • RST: Request to reset the connection
  • FIN: Last packet - transmission done

UDP:

Source Port
16 bits
(0 - 65535)
Destination Port
16 bits
(0 - 65535)
Length
(entire datagram: header and data)
16 bits
(8 - 65535)
Checksum
(If not used - all zeros)
16 bits

Configuring Linux For Network Multicast:

Regular network exchanges of data are peer to peer unicast transactions. An HTTP request to a web server (TCP/IP), email SNMP (TCP/IP), DNS (UDP), FTP (TCP/IP), ... are all peer to peer unicast transactions. If one wants to transmit a video, audio or data stream to multiple nodes with one transmission stream instead of multiple individual peer to peer connections, one for each node, one may use multicasting to reduce network load. Note that multicast and a network broadcast are different and that multicast is a UDP broadcast only. Multicast messages are only "heard" by the nodes on the network that have "joined the multicast group" which are those that are interested in the information.

The Linux kernel is Level-2 Multicast-Compliant. It meets all requirements to send, receive and act as a router for multicast datagrams. For a process to receive multicast datagrams it has to request the kernel to join the multicast group and bind the port receiving the datagrams. When a process is no longer interested in the multicast group, a request is made to the kernel to leave the group. It is the kernel/host which joins the multicast group and not the process. Kernel configuration requires "CONFIG_IP_MULTICAST=y". In order for the Linux kernel to support multicast routing, set the following in the kernel config:

  • CONFIG_IP_MULTICAST=y
  • CONFIG_IP_ROUTER=y
  • CONFIG_IP_MROUTE=y
  • CONFIG_NET_IPIP=y

The default Red Hat / Fedora kernels are compiled to support multicast.

See the YoLinux tutorial on optimization and rebuilding the Linux kernel.

Note that on multihomed systems (more than one IP address/network card), only one device can be configured to handle multicast.

Class D networks with a range of IP addresses from 224.0.0.0 to 239.255.255.255 (See Network Classes above) have typically been reserved for multicast.

Useful commands:

Command Description
cat /proc/net/igmp List multicast group to which the host is subscribed. Use "Internet Group Management Protocol".
(See /usr/src/linux/net/core/igmp.c)
cat /proc/net/dev_mcast List multicast interfaces.
(See /usr/src/linux/net/core/dev_mcast.c)
ping 224.0.0.1 All hosts configured for multicast will respond with their IP addresses
ping 224.0.0.2 All routers configured for multicast will respond
ping 224.0.0.3 All PIM routers configured for multicast will respond
ping 224.0.0.4 All DVMRP routers configured for multicast will respond
ping 224.0.0.5 All OSPF routers configured for multicast will respond

Multicast Application Programming:

Multicast transmissions are achieved through proper routing, router configuration (if communicating through subnets) and programatically with the use of the following "C" function library calls:

Function Call Description
setsockopt(int sockfd, int level, int optname, const void* optval, socklen_t optlen) Pass information to the Kernel.
getsockopt(int sockfd, int level, int optname, void *optval, socklen_t *optlen) Retrieve information broadcast using multicast.

Where optname is:
OptionValueDescription
IP_MULTICAST_IF32Specify ethernet interface to use:
struct in_addr interface_addr;
setsockopt (socket, IPPROTO_IP, IP_MULTICAST_IF, &interface_addr, sizeof(interface_addr));
Can use setsockopt() with option INADDR_ANY to reset the configuration.
IP_MULTICAST_TTL33Time To Live (TTL) value sets how many router hops are allowed.
Restrict to local network:
u_char ttl = 1;
setsockopt(socket, IPPROTO_IP, IP_MULTICAST_TTL, &ttl, sizeof(ttl));
Values of ttl are 0 to 255
IP_MULTICAST_LOOP34Data sent is looped back to the same host.
Enable:
uchar loop = 1
setsockopt(socket, IPPROTO_IP, IP_MULTICAST_LOOP, &loop, sizeof(loop));
where loop=0 to disable loopback
IP_ADD_MEMBERSHIP35Specify multicast group. Include file linux/in.h set struct ip_mreq
  • ip_mreq.imr_multiaddr: IP multicast address
  • ip_mreq.imr_interface: local IP interface address (can be INADDR_ANY)
setsockopt (socket, IPPROTO_IP, IP_ADD_MEMBERSHIP, &mreq, sizeof(mreq));
Add as many groups as needed.
IP_DROP_MEMBERSHIP36Closing the socket will drop membership or:
struct ip_mreq mreq;
setsockopt (socket, IPPROTO_IP, IP_DROP_MEMBERSHIP, &mreq, sizeof(mreq));
IP_UNBLOCK_SOURCE37Unblock a previously blocked source for a given multicast group.
IP_BLOCK_SOURCE38Block IPv4 multicast packets that have a source address that matches the given IPv4 source address.
IP_ADD_SOURCE_MEMBERSHIP39Join IPv4 multicast group on an IPv4 interface and specify the IPv4 source-filter address. Set these values by using the SETSOCKOPT API.
IP_DROP_SOURCE_MEMBERSHIP40Drop multicast group.
IP_MSFILTER41
MCAST_JOIN_GROUP42Join a multicast group and set the IPv4 or IPv6 multicast address and the local interface.
MCAST_BLOCK_SOURCE43
MCAST_UNBLOCK_SOURCE44
MCAST_LEAVE_GROUP45Leave a multicast group.
MCAST_JOIN_SOURCE_GROUP46
MCAST_LEAVE_SOURCE_GROUP47
MCAST_MSFILTER48
IP_MULTICAST_ALL49
For more on multicast programming see: Multicast Howto.

The multicast application will specify the multicast group, loopback interface, TTL (network time to live or router hops), network interface and the multicast group to add or drop.

Add route to support multicast:
  • /sbin/ifconfig eth0 multicast
  • route -n add -net 224.0.0.0 netmask 240.0.0.0 dev eth0
  • /sbin/ip route show (show the route you just created)
Note that if adding a route to forward packets through a router, that the router MUST be configured to forward multicast packets. Many routers do not support forwarding of multicast packets or have a default configuration which does not. The internet by default does not forward multicast packets.

Multicast Packet Forwarding and Routing:

Linux can be configured to forward packets and act as a simple router between two networks. The prior section on "Enable Forwarding" shows how Linux can be configured to forward regular TCP and UDP packets. This does not include multicast packets.

Multicasting begins with an application requesting multicast group membership. It is this request that tells a muliticast router to enable forwarding on the interface that the request arrived on -- no request, no routing. The request must be processed by a multicasting router. Multicast packets can be forwarded and routed by running multicast routing software on the system.

Routing softwareProtocolsDescription
XorpPIMRouting of IPv4 and IPv6 network protocols including UDP multicast
SmcRoutePIMSimple static routing of UDP multicast
mroutedDVMRPDVMRP (Distance Vector Multicast Protocol) is a depricated protocol thus making this software obsolete.
pimdPIM
PIM-SM: PIM Sparse Mode
PIM-DM: PIM Dense Mode
Supports PIM (Protocol Independent Multicast) routing protocol.
QuaggaPIM
BGP-4
RIP
OSPFv2i, etc
Quagga (a fork of Zebra) is a routing application supporting a full range of routing protocols.

Serial Line IP:

Linux can support Internet Protocol (IP) protocol over serial device interfaces. Over long distances this is typically supported using a modem over telephone lines (POTS: Plain Old Telephone Service) or satellite communications.

PPP: Point-to-Point Protocol

This is the most common form of IP over serial line and is the most common technique used by telephone dial-up ISPs. The following tutorials use a Hayes command set compatible modem.

PPTP: Point-to-Point Tunneling Protocol
SLIP: Serial Line IP (older than PPP and less capable)

Devices:

InterfacesDescription
sl0 sl1 sl2 sl3 SLIP interfaces. Linux kernel supports up to four.
COM1 COM2 COM3 COM4Serial Ports (RS-232 hardware)
/dev/ttyS0 /dev/ttyS1 /dev/ttyS2 /dev/ttyS3Serial devices (dial in)
(virtual terminal consoles)
/dev/cua0 /dev/cua1 /dev/cua2 /dev/cua3Serial devices (dial out)
4 4 4 4Interface major numbers (dial in)
5 5 5 5Interface major numbers (dial out)
64 65 66 67Interface minor numbers
The command ls -l /dev/ttyS* /dev/cua* will show the device major and minor numbers.

The major and minor numbers are used when creating a SPLIP interface:
Example:
  • mknod -m 666 /dev/cua1 c 5 65
  • chown root.uucp /dev/cua1
SLIP configuration:
  • Configure /etc/resolv.conf
    (See notes above in this tutorial)
  • Attach network interface to serial line on COM2: /sbin/slattach -p slip -s 19200 /dev/ttyS1 &
  • Assign local and remote IP: /sbin/ifconfig sl0 192.168.1.10 pointopoint 192.168.1.40 up
    Assign local IP (192.168.1.10) and connect to remote server (192.168.1.40)
    Alternate example: /sbin/route add plip1 192.168.1.10 pointopoint 192.168.1.40
  • Add route: /sbin/route add default dev sl0 &
Also see Dialup IP (DIP)

PLIP: Parallel Line IP

Point to point serial links (rather than broadcast networks line ethernet), can also be supported over parallel printer ports.

An IP network at 10 to 20 kBps over parallel printer ports lp0 or lp1 are much faster than serial. Linux supports mode 0 PLIP transferring half bytes of data at a time. Requires "NULL Printer" or "Turbo Laplink" printer connection. See kernel source drivers/net/Space.c.
InterfaceI/O PortIRQ
plip00x3BC7
plip10x3787
plip20x2785
PLIP Configuration:
  • ifconfig plip1 192.168.1.10 pointopoint 192.168.1.40
    connect host 192.168.1.10 to remote host 192.168.1.40
  • route add default gw 192.168.1.40
    Specify remote host as the gateway.
On the remote host at the other end of the cable, the opposite must be specified:
  • ifconfig plip1 192.168.1.40 pointopoint 192.168.1.10
  • route add 192.168.1.10 gw 192.168.1.40
Serial port related man pages:
  • setserial - get/set Linux serial port information
    Typical configuration:
    • Interrupt detection: /sbin/setserial -W /dev/cua*
    • Configuration: /sbin/setserial /dev/cua1 auto_irq skip_test autoconfig
      or /sbin/setserial /dev/cua1 auto_irq skip_test autoconfig uart 16550
    • Display Configuration: /sbin/setserial -bg /dev/cua*
    • Enable hardware handshake: stty crtscts < /dev/cua1
      (verify: stty -s < /dev/cua1)
  • stty - change and print terminal line settings
  • tty - print the file name of the terminal connected to standard input
  • pppd - Point-to-Point Protocol Daemon
  • slattach - attach a network interface to a serial line
  • mknod - make block or character special files

Living in a MS/Windows World:

  • SMB4k: My favorite MS/Windows file share browser.

  • In Nautilus use the URL "smb:" to view MS/Windows servers. [tutorial]

See the YoLinux tutorial on integrating Linux into a Microsoft network.

Network Definitions:

  • IPv4: Most of the Internet servers and personal computers use Internet Protocol version 4 (IPv4). This uses 32 bits to assign a network address as defined by the four octets of an IP address up to 255.255.255.255. Which is the representation of four 8 bit numbers thus totaling 32 bits.
  • IPv6: Internet Protocol version 6 (IPv6) uses a 128 bit address and thus billions and billions of potential addresses. The protocol has also been upgraded to include new quality of service features and security. Currently Linux supports IPv6 but IPv4 is used when connecting your computer to the internet.
  • TCP/IP: (Transmission Control Protocol/Internet Protocol) uses a client - server model for communications. The protocol defines the data packets transmitted (packet header, data section), data integrity verification (error detection bytes), connection and acknowledgement protocol, and re-transmission.
  • TCP/IP time to live (TTL): This is a counting mechanism to determine how long a packet is valid before it reaches its destination. Each time a TCP/IP packet passes through a router it will decrement its TTL count. When the count reaches zero the packet is dropped by the router. This ensures that errant routing and looping aimless packets will not flood the network.
  • MAC Address: (media access control) is the network card address used for communication between other network devices on the subnet. This info is not routable. The ARP table maps TCP/IP address (global internet) to the local hardware on the local network. Use the command /sbin/ifconfig to view both the IP address and the MAC address. The MAC address uniquely identifies each node of a network and is used by the Ethernet protocol.
  • Full Duplex: Allows the simultaneous sending and receiving of packets. Most modern modems support full duplex.
  • Half Duplex: Allows the sending and receiving of packets in one direction at a time only.
  • OSI 7 Layer Model: The ISO (International Standards Organization) has defined the OSI (Open Systems Interconnection) model for current networking protocols.
    OSI Layer Description Linux Networking Use
    7 Application Layer.
    The top layer for communications applications like email and the web.
    telnet, web browser, sendmail
    6 Presentation Layer.
    Syntax and format of data transfer.
    SMTP, http
    5 Session Layer.
    4 Transport Layer.
    Connection, acknowledgement and data packet transmission.
    TCP
    UDP
    3 Network Layer. IP
    ARP
    2 Data Link Layer.
    Error control, timing
    Ethernet
    1 Physical Layer.
    Electrical characteristics of signal and NIC
    Ethernet
  • Network Hub: Hardware to connect network devices together. The devices will all be on the same network and/or subnet. All network traffic is shared and can be sniffed by any other node connected to the same hub.
  • Network Switch: Like a hub but creates a private link between any two connected nodes when a network connection is established. This reduces the amount of network collisions and thus improves speed. Broadcast messages are still sent to all nodes.

Related Links:

Test Internet Bandwidth:


More Networking Man Pages:

  • icmp - Linux IPv4 ICMP kernel module
  • usernetctl - allow a user to manipulate a network interface if permitted
  • SNMP: Simple Network Management Protocol (query/configure network devices)
    (RH/CentOS packages net-snmp and net-snmp-utils)
    • snmpd - daemon to respond to SNMP request packets
    • /etc/snmp/snmp.conf - configuration file for Net-SNMP applications
    • snmpconf - creates and modifies SNMP configuration files
    • snmpstatus - retrieves a fixed set of management information from a network entity
    • snmptrap - sends an SNMP notification to a manager
    • snmpnetstat - display networking status and configuration information from a network entity via SNMP
    • snmptest - communicates with a network entity using SNMP requests
    • snmpcmd - options and behaviour common to most of the Net-SNMP commandline tools
      snmpcmd [OPTIONS] AGENT [PARAMETERS]
    • snmpset - communicates with a network entity using SNMP SET requests
      snmpset [COMMON OPTIONS] OID TYPE VALUE [OID TYPE VALUE]...
    • snmpget - communicates with a network entity using SNMP GET requests
      snmpget [COMMON OPTIONS] [-Cf] OID [OID]...
    • variables - Format of specifying variable names to SNMP tools

Books:

"Networking Linux: A Practical Guide to TCP/IP"
by Pat Eyler
ISBN # 0735710317, New Riders Publishing

Amazon.com
"LINUX TCP/IP Network Administration
by Scott Mann, Mitchell Krell
ISBN # 0130322202, rentice Hall PTR

Amazon.com
"Advanced Linux Networking"
by Roderick W. Smith
ISBN# 0201774232, Addison-Wesley Professional; 1st edition (July 15, 2002)

Amazon.com
"Linux Routing"
by Dee Ann LeBlanc, Joe "Zonker" Brockmeier, Ronald W. McCarty Jr.
ISBN# 1578702674, Sams; 1st edition (October 11, 2001)

Amazon.com
"Policy Routing Using Linux"
by Matthew G. Marsh
ISBN# 0672320525, Sams; (March 6, 2001)

Amazon.com
Amazon book image "Ubuntu Unleashed 2017 edition:"
Covering 16.10 and 17.04, 17.10 (12th Edition)
by Matthew Helmke, Andrew Hudson and Paul Hudson
Sams Publishing, ISBN# 0134511182

Amazon.com
Amazon book image "Ubuntu Unleashed 2013 edition:"
Covering 12.10 and 13.04 (8th Edition)
by Matthew Helmke, Andrew Hudson and Paul Hudson
Sams Publishing, ISBN# 0672336243
(Dec 15, 2012)

Amazon.com
Amazon book image "Ubuntu Unleashed 2012 edition:"
Covering 11.10 and 12.04 (7th Edition)
by Matthew Helmke, Andrew Hudson and Paul Hudson
Sams Publishing, ISBN# 0672335786
(Jan 16, 2012)

Amazon.com
Amazon book image "Red Hat Enterprise Linux 7: Desktops and Administration"
by Richard Petersen
Surfing Turtle Press, ISBN# 1936280620
(Jan 13, 2017)

Amazon.com
Amazon book image "Fedora 18 Desktop Handbook"
by Richard Petersen
Surfing Turtle Press, ISBN# 1936280639
(Mar 6, 2013)

Amazon.com
Amazon book image "Fedora 18 Networking and Servers"
by Richard Petersen
Surfing Turtle Press, ISBN# 1936280698
(March 29, 2013)

Amazon.com
Amazon book image "Fedora 14 Desktop Handbook"
by Richard Petersen
Surfing Turtle Press, ISBN# 1936280167
(Nov 30, 2010)

Amazon.com
Amazon book image "Fedora 14 Administration and Security"
by Richard Petersen
Surfing Turtle Press, ISBN# 1936280221
(Jan 6, 2011)

Amazon.com
Amazon book image "Fedora 14 Networking and Servers"
by Richard Petersen
Surfing Turtle Press, ISBN# 1936280191
(Dec 26, 2010)

Amazon.com
Amazon book image "Practical Guide to Ubuntu Linux (Versions 8.10 and 8.04)"
by Mark Sobell
Prentice Hall PTR, ISBN# 0137003889
2 edition (January 9, 2009)

Amazon.com
Amazon book image "Fedora 10 and Red Hat Enterprise Linux Bible"
by Christopher Negus
Wiley, ISBN# 0470413395

Amazon.com
"Red Hat Fedora 6 and Enterprise Linux Bible"
by Christopher Negus
Sams, ISBN# 047008278X

Amazon.com
"Fedora 7 & Red Hat Enterprise Linux: The Complete Reference"
by Richard Petersen
Sams, ISBN# 0071486429

Amazon.com
"Red Hat Fedora Core 6 Unleashed"
by Paul Hudson, Andrew Hudson
Sams, ISBN# 0672329298

Amazon.com
Magazine logo
